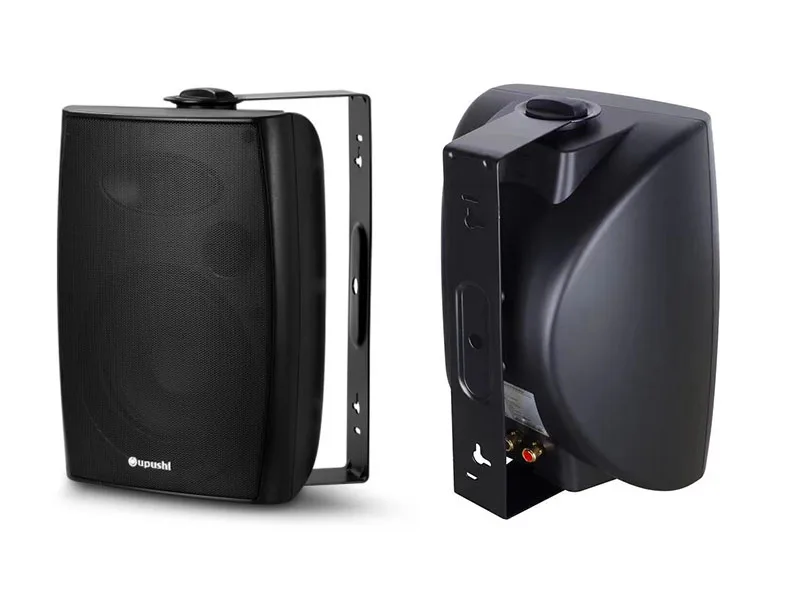

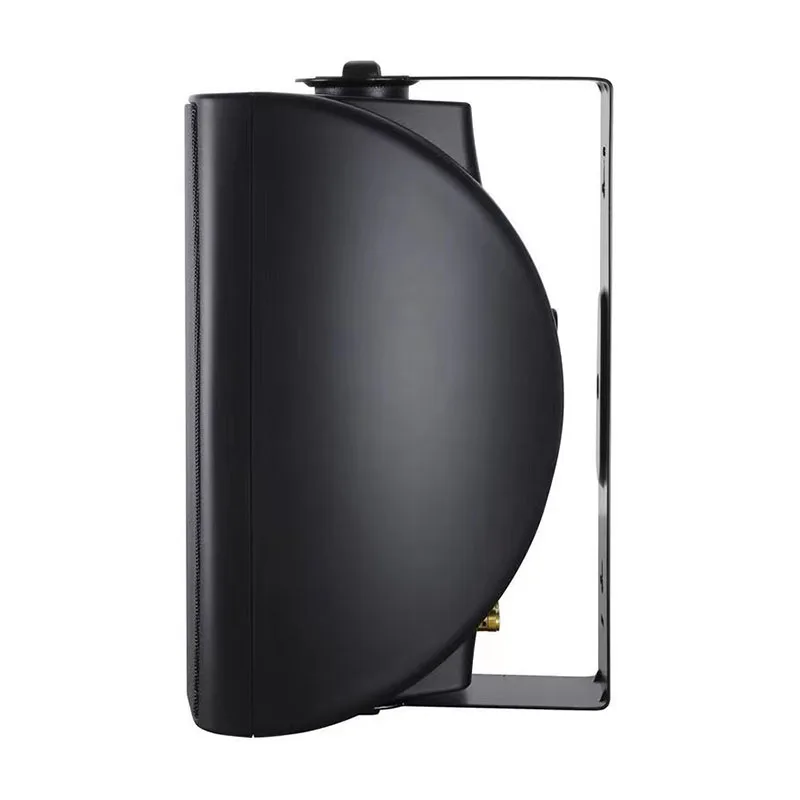

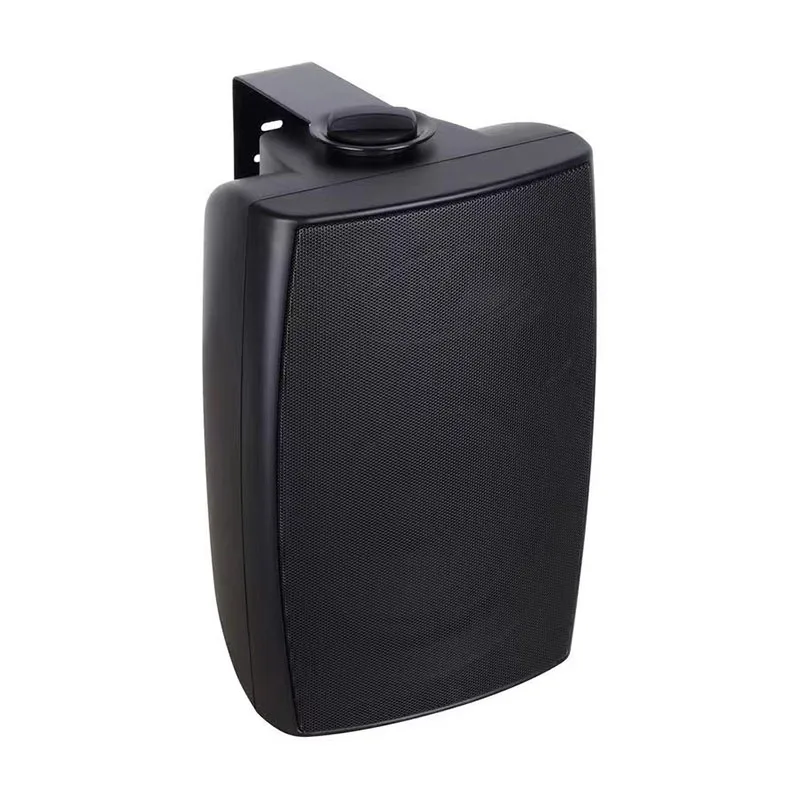

supplier 2-way full range professional sound passive hanging loudspeaker box wall mounted pa speaker system

Professional Wall Mounted Speaker The bass adopts the top KTV paper paddle formula and high-quality foam rubber edge, while the tweeter adopts a 25-core high-quality silk film. The bass is full and strong, the treble is soft and highly analytical, without compression, and the overall sound quality is pure and smooth, with a high fidelity design.

Feature:
Low frequency unit: customized high-quality unit, 35mm voice coil High frequency unit: customized high-quality unit, 1-inch throat, 25mm voice coil
System
2-way 6.5 inch full frequency speaker
frequency range
60Hz-20KHz (-3dB)
Power (constant resistance)
80W(RMS)、160W(PEAK)
Sensitivity( 1Watts@1m )
90dB/1W/1M
Maximum sound pressure level
100dB(RMS)、108dB(PEAK)
Full frequency mode sound pressure level
Continuous 90dB, peak value: 108dB
Nominal impedance
Voltage
100V/70V
Power selection
60/30/15/7.5W/8Ω
Coverage angle
(Horizontal X Vertical) H80 ° × V60°
Box material
Plastic (PP)
Painting treatment:
Black/white gloss paint
size
345*215*210mm
Net weight
4.9 Kg/piece
Gross weight
12.6Kg/pair

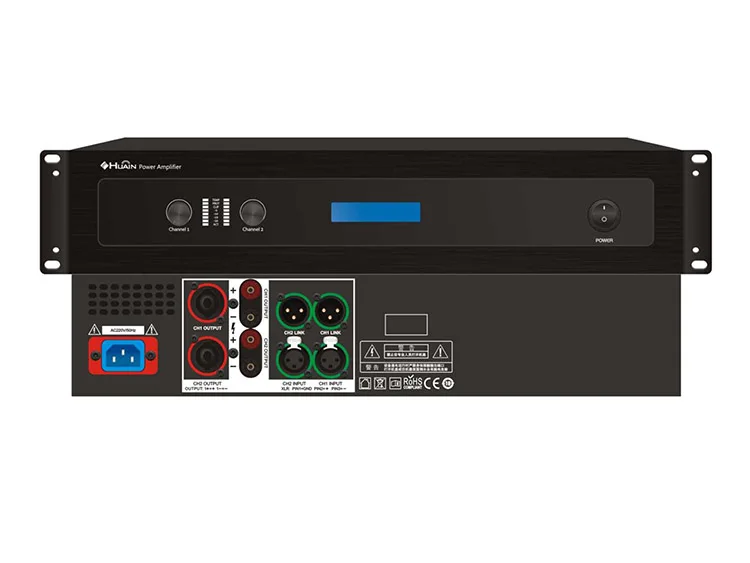

Power amplifier

·Digital power module
·Large capacity switching power supply, with separate cooling system and good heat
dissipation device.
·Equipped with the function of delayed start system to protect the speaker from impact and damage.
·Have 2 × 250W/8Ω,2 × 500w/4 Ω, bridge 1 × 600w/8 Ω various impedance powers.
·The input has single channel and stereo mode selection.
·The built-in filtering function can filter out the high-frequency interference of digital sound and other equipment.
·Double XLR input connection, speaker and Phoenix terminal two output connections, stronger compatibility.
Hanging point:

M8 screw hanging point, equipped with multiple fixed installation points

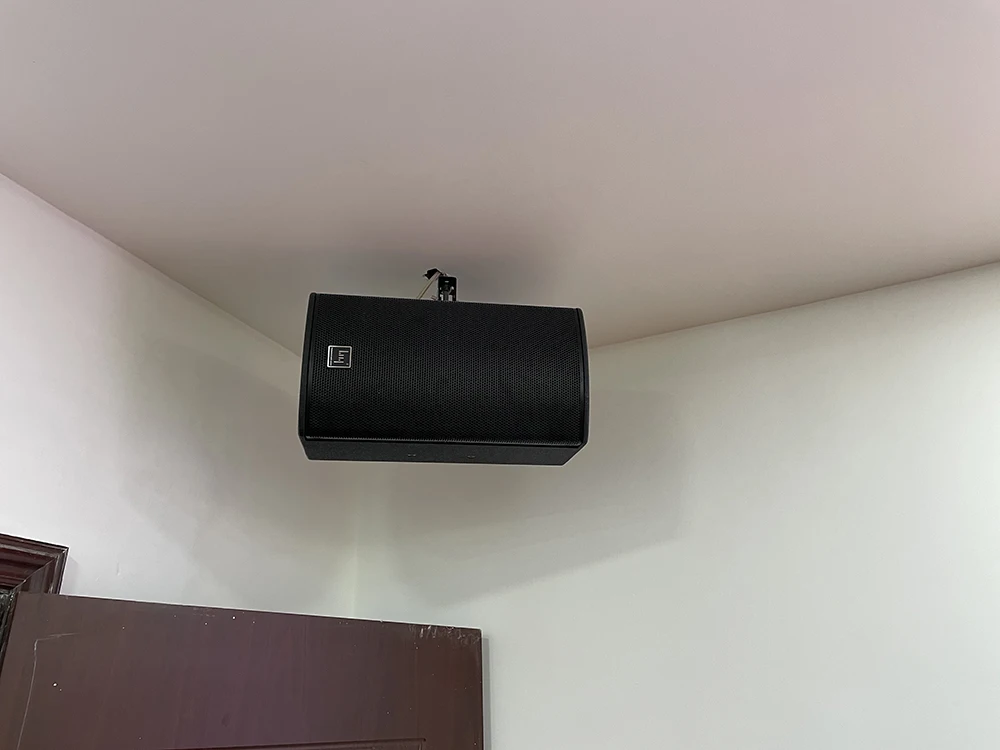

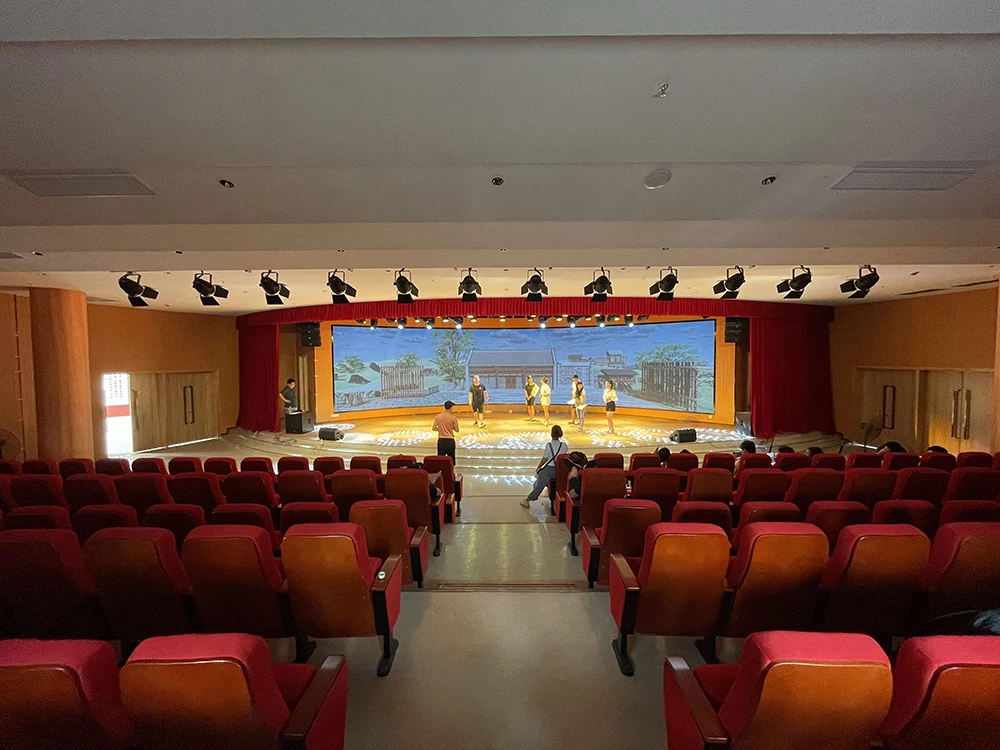

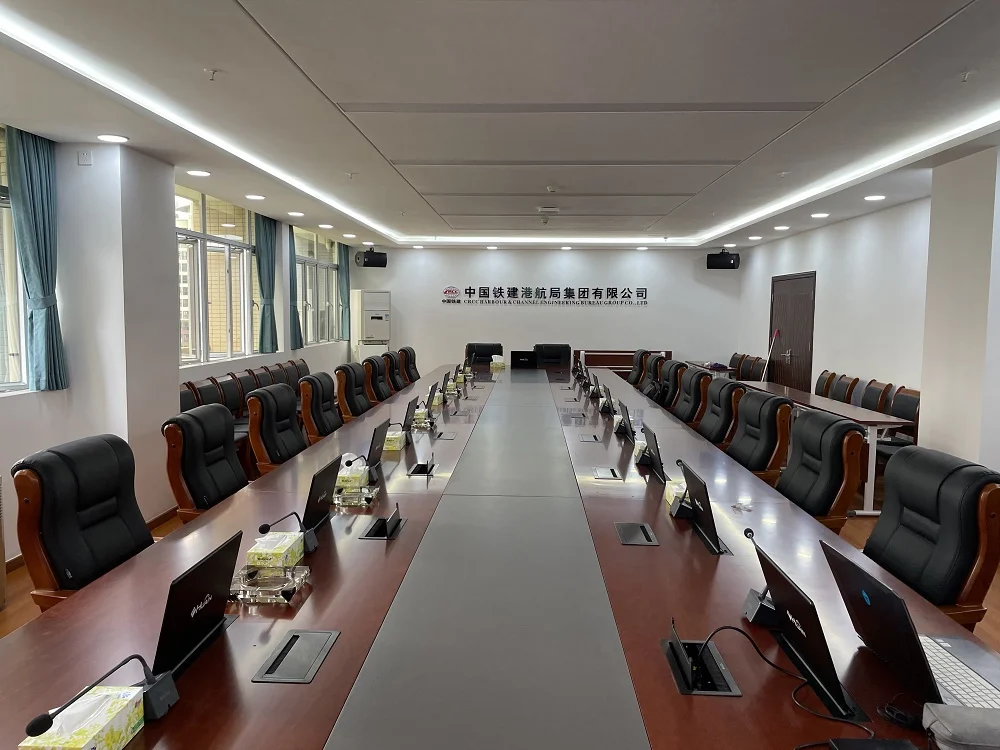

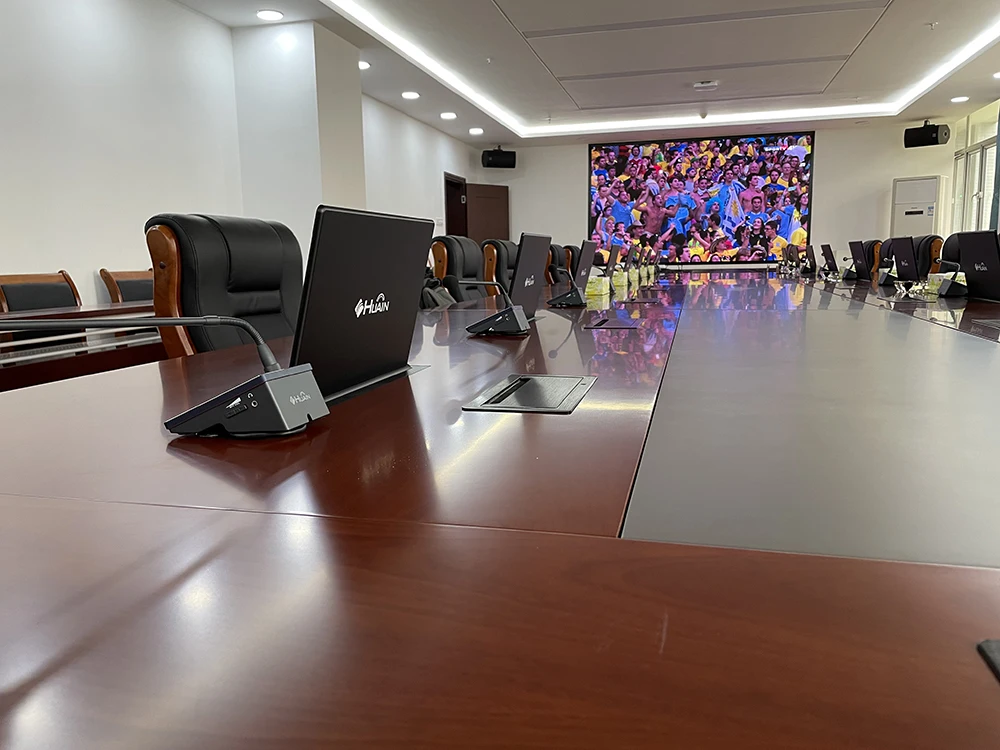

Field case show

Since we ship from Germany, additional costs through taxes and customs may be incurred

$1.00
