Intelligent Audio voting Conference System Supports Connection of 240 Delegate Units Discussion Devices

Product Description

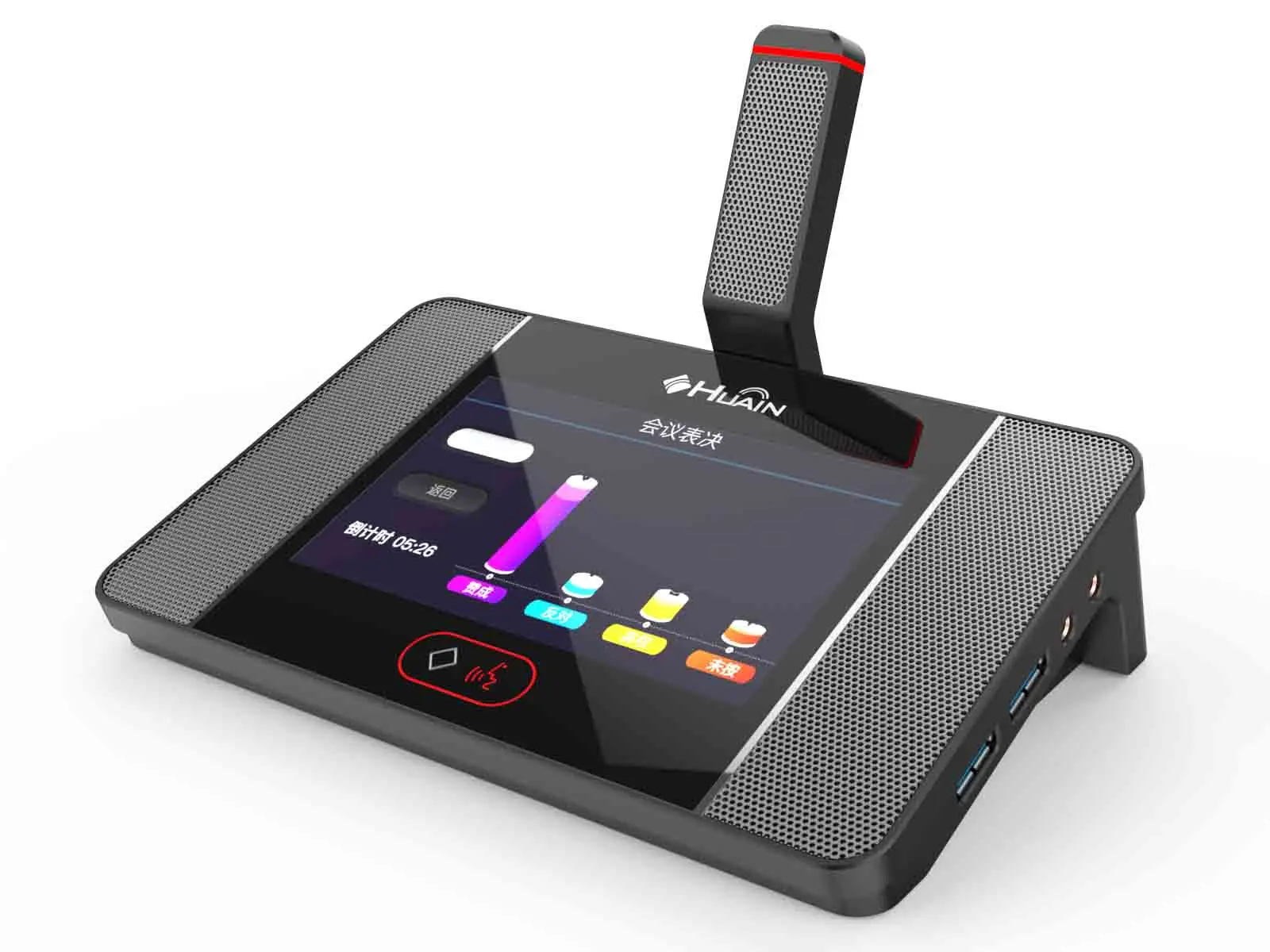

HUAIN Audio Conference System

This conference system supports 240 conference microphone units, the microphone has a 3.5 “LCD fully laminated touch screen and magnetic S-type microphone pole, the effective pickup distance of up to 60-100cm.

microphone using the full zinc alloy body, dual USB interface, dual headset interface. The main features are: support for 8 conference modes, support for video tracking, conference services, check-in, voting, 3-language display, 48V dual backup.

Feature：

– Dual backup design, support for hand-in-hand meetings with phantom power or Dante dual-system audio signal output at the same time. – Magnetic pluggable microphone pole, built-in high-fidelity 2 × 9.7 mm gold-plated condenser pickup head. – Zinc-aluminum alloy microphone pole, microphone pole with 0.4mm high-density acoustic interference holes, built-in auto-gain AGC function, the effective pickup distance up to 60-100cm. – All zinc aluminum alloy body, 6 level touch glass panel, with waterproof and dustproof function. – Support the “ring hand” connection, the microphone comes with a professional 8-core or CAT5 cable. – Support the number of limitations, first-in-first-out, last-in-first-out, the chairman allows (application to speak), voice-activated, time-limited speech, queuing up to speak, free discussion of the eight conference modes. – Built-in multi-channel internal communication and conference services, support for sending tea, paper, pens, waiters and other demand notification, support for Web page service screen to handle requests for services. – Expandable simultaneous interpretation function, support up to 64 languages.

Models	Longitudinal beam array conference unit
System capacity	Single channel 20 sets
Type of microphone	2 x 9.7mm gold-plated microphone core
Frequency response	30Hz~20KHz
Signal to noise ratio	>92dB
Dynamic range	98dB
The connection method	T-shaped head, ring hand in hand ’PNP’
Connect the head	Large 8-core (or mesh)
Number of units opened	1/2/3/4/5/6/7/8/9 or all
Number of the function	You can customize the ID number
The power consumption of the unit	2.5 W.
Equivalent noise	20 the dba (SPL)
Maximum loudest pressure level	136 db (THD < 3%)
Headphone output interface	Φ3.5mm solid jack
Chairman of the number	150 units
VIP number	More than one
color	Dark blue (black glass panel)
The weight of the	1.35 Kg
Installation dimensions	Mm (excl. microphone)
installation	Desktop type
