System type:
|
2 unit 2-way full range frequency loudspeaker
|
Rated power:
|
550 W
|
Max power:
|
1100W
|
Peak power:
|
2200W
|
Nominal impedance:
|
8 Ω
|
Recommended power amplifier output rating:
|
700 W—1000 W@8 Ω
|
Nominal sensitivity(1W@1m):
|
100 dB
|
Max SPL(Pmax@1m):
|
127 dB@550w(130dB@1100w)
|
Frequency response (-10dB):
|
45Hz—20KHz
|
Nominal coverage pattern (-6dB):
|
80°H×50°V
|
speaker component:
|
15″(380mm diameter 75mm voice coil)LF driver ×1
|
3″(75mm voice coil)HF driver ×1
|
|
Crossover modes:
|
Passive
|
Connector:
|
Speakon NL4×2(PIN1+/2+POS. PIN1-/2-NEG.)
|
Enclosure:
|
18 mm(0.7″)High quality birch plywood
|

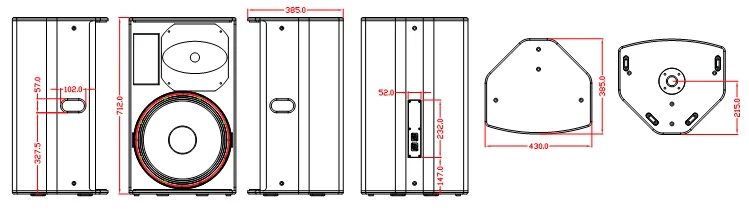

Dimensions:
|
W430mm x D385mm x H712mm
|
Color:
|
Default is black, other colors can be customized
|
Weight(each):
|
27.95 kg
|
Shipping Weight:
|
30.85kg
|
Reference applications:
|
Conference rooms, multipurpose halls, churches, auditoriums, small shows
|
