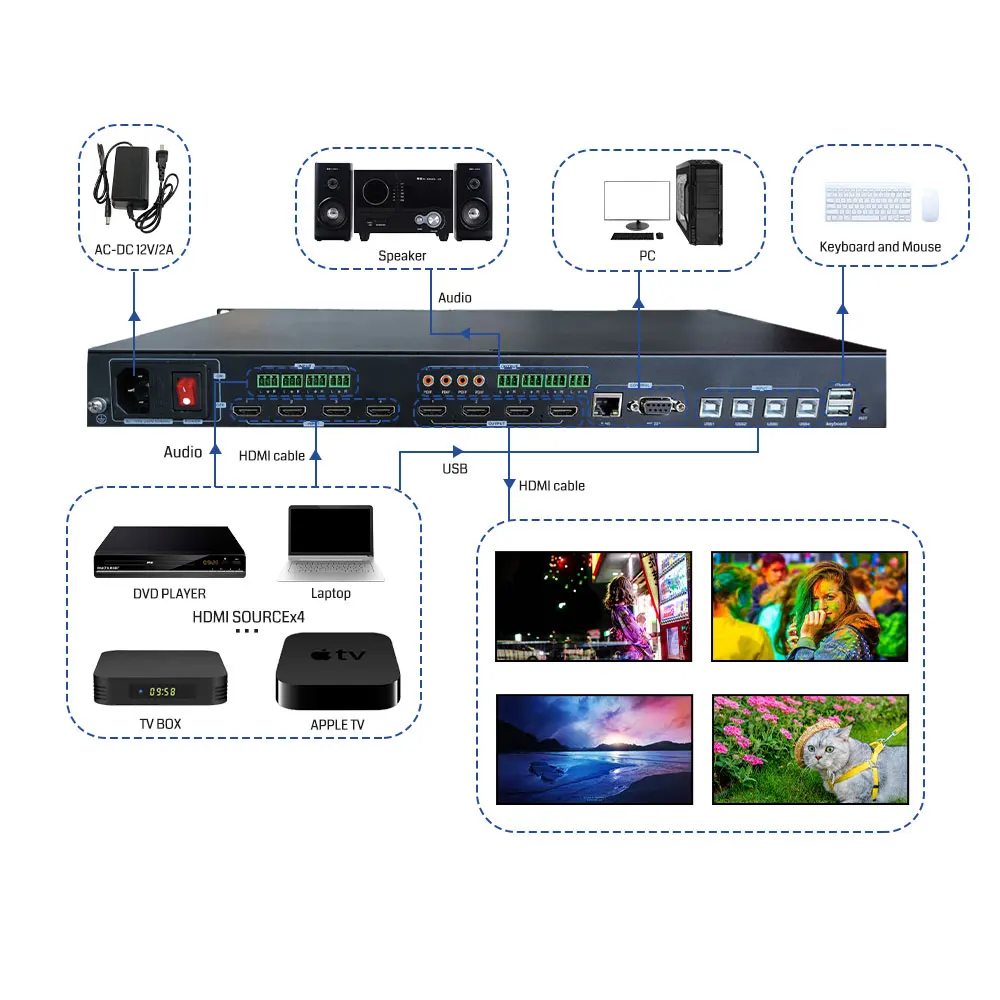

Interface
|
HDMI-A / 3P-3.5mmAudio Phoenix Terminal / USB2.0 AM/BM
|
|
HDMI Version Information
|
HDMI2.0,HDCP2.2
|
|
Bandwidth
|
18Gbps
|
|
Video Resolution
|
|
|
Input Resolution |
800×600@60Hz,1024×768@60Hz, 1280×768@60Hz,1280×800@60Hz,
1280×1024@60Hz,1360×768@60Hz, 1366×768@60Hz,1400×1050@60Hz, 1440×900@60Hz,1600×1200@60Hz, 1680×1050@60Hz, 1920×1200@60Hz. 480p,576p,720p,1920x1080i,1920x1080p, 3840×2160@24Hz/25Hz/30Hz/50Hz/60Hz, 4096×2160@24Hz/25Hz/30Hz/50Hz/60Hz. |
|
Output resolution
|
1920×1080@60Hz, 3840×2160@30Hz,
3840×2160@60Hz, 1280×720@60Hz, 1920X1080@30Hz, 1360×768@60Hz, 1900×1200@60Hz, 4096×2160@60Hz, |
|
HDMI signal amplitude
|
T.M.D.S +/- 0.4Vpp
|
|
Differential impedance
|
100±15ohm
|
|
Serial RS232/Ethernet WEB control
|
|
|
Baud rate and protocol
|
aud rate: 115200, data bits: 8, stop bits: 1, no calibration
|
|
Stop bit: 1, no parity bit
|
|
|
Browser
|
IE10.0+,HTML5
|
|
Power supply
|
|
|
Maximum power, voltage
|
50W, 110-240VAC
|
|
Chassis parameters
|
|
|
Dimension(mm)
|
430(L)X260(W)X45 (H)
|
|
Weight
|
5Kg
|
|
Other
|
|
|
Operating temperature
|
-20 to 50°C
|
|
Storage temperature
|
-20 to 70°C
|
|
Operating humidity
|
10%-70%
|
