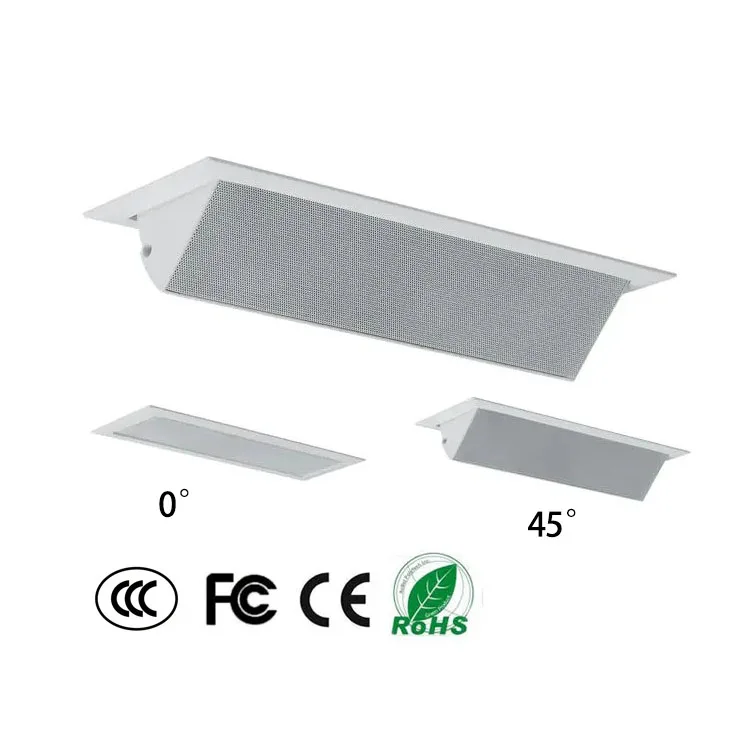

3 way Electric Flip motorized in ceiling speakers Full frequency for home theater conference with remote control

Main features: ● multiple positioning angle adjustment; ● central control can be connected through relay; ● it can be manually controlled by 8-way controller.

unit	4× 3 “full frequency high-quality speaker unit
frequency response	100Hz-20KHz
power	80W（RMS）/320W（PEAK）
impedance	8Ω
sensitivity	98dB/1W/1M
Maximum sound pressure	117dB（RMS）/123dB（PEAK）
Coverage angle	110° × 30°
flip angle	0-45°
Central control	Connected to the central control system through relay
Material structure	aluminium alloy
Painting treatment	White high hardness paint
Mesh cover material	round perforated steel mesh
Product size	376×128×120mm
Opening size	355×110×120mm
weight	3.15Kg
colour	white

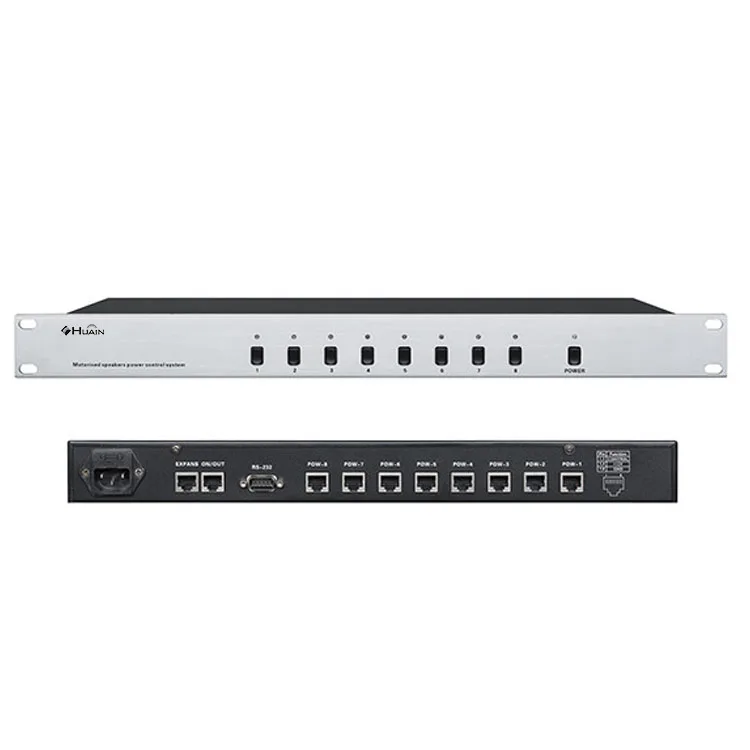

8-way electric speaker controller

Support 8-channel single channel or unified control of all channels. With 8 RJ45 network cable interfaces, the control distance can reach 120m. Support 15 sets of cascade, and the maximum length of cascade control line is 3S. Support the display of power switch, standby, running, channel and other indicators. With timing control function, the time interval is 1s.
